Dayliff DDC170
Available

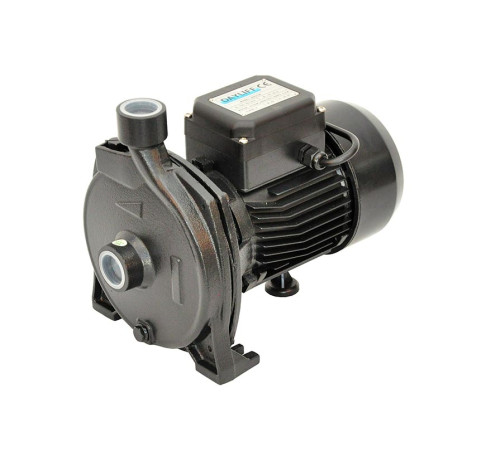

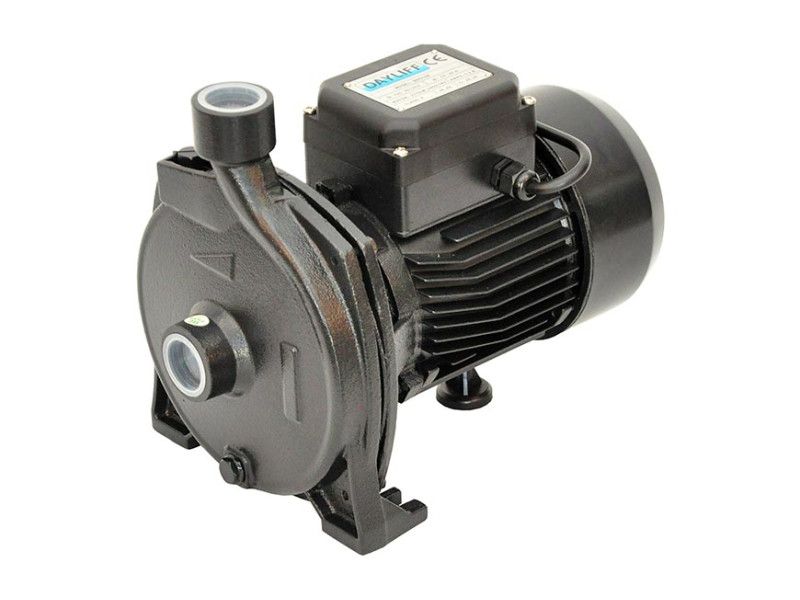

Dayliff DDC170
The Dayliff DDC centrifugal non self priming closed impeller pump is specially designed for all small scale domestic and commercial water supply uses and is particularly suited for water boosting and transfer applications. The pump body is cast iron and the impeller brass.
DDC158 Econo is of lighter construction and is fitted with stainless steel impeller.
MOTORS
Pumps are close coupled to reliable TEFC electric motors designed for continuous operation and are provided with a thermal cutout to protect against electrical overload. They can be connected directly to the mains power supply through a 10A fuse or MCB.
Enclosure Class: IP44
Insulation Class: F
Speed: 2900rpm
Voltage:1x240V
OPERATING CONDITIONS
Pumped Liquid: Thin, clean, chemically non-aggressive liquids with max. sand content of 0.25%
Max. Fluid Temperature: +60°C
Max. Ambient Temperature: +40°C
Max. Suction Lift: 7m at sea level
PUMP DATA
| Model | Motor | Dimensions(mm) | Weight(kg) | ||||||
| kW | HP | Current (A) | L | W | H | DN1(") | DN2(") | ||
| DDC 158E | 0.75 | 1 | 4.5 | 305 | 180 | 240 | 1 | 1 | 12 |
| DDC 158 | 5.2 | 305 | 190 | 260 | 14 | ||||
| DDC 170 | 1.1 | 1.5 | 7 | 346 | 230 | 293 | 1.5 | 1.5 | 21 |
Key Features
Tsh 773,490
MPESA, Airtel Money, VISA & MasterCard
Delivery is within 2-3DAYS days
Warranty - 12 Months
