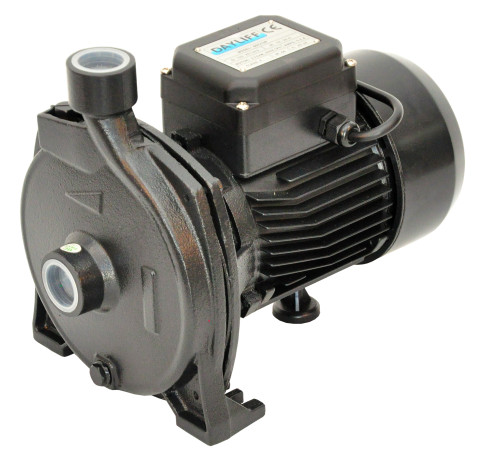

Dayliff DDC 158

Available

Quality Booster Pump

Manufactured by Dayliff

The Dayliff DDC centrifugal non self priming closed impeller pump is specially designed for all small scale domestic and commercial water supply uses and is particularly suited for water boosting and transfer applications. The pump body is cast iron and the impeller stainless steel.

MOTORS
Pumps are close coupled to reliable TEFC electric motors designed for continuous operation and are provided with a thermal cutout to protect against electrical overload. They can be connected directly to the mains power supply through a 10A fuse or MCB.

Read More

Key Features


Read More

Tsh 334,000

Dayliff DDC 158 is Manufactured by Dayliff

MPESA, Airtel Money, VISA & MasterCard

Delivery is within 0 - 2 days

Warranty - 24 Months

The Dayliff DDC centrifugal non self priming closed impeller pump is specially designed for all small scale domestic and commercial water supply uses and is particularly suited for water boosting and transfer applications. The pump body is cast iron and the impeller stainless steel.

MOTORS
Pumps are close coupled to reliable TEFC electric motors designed for continuous operation and are provided with a thermal cutout to protect against electrical overload. They can be connected directly to the mains power supply through a 10A fuse or MCB.

Motor
Enclosure Class IP44
Voltage 1 X 240V
Insulation Class F
Speed 2900rpm
Operating Conditions
Pumped Liquid Thin, clean, chemically non-aggressive liquids without solid particles or fibres
Maximum Fluid Temperature +60C
Maximum Ambient Temperature +40C
Maximum Suction Lift 7m (at sea level)
Pump Information
Model DDC 158
Power (kW) 0.75
Maximum Operating Current (A) 5.2
Dimensions - DN1 25
Dimensions - DN2 25
Dimensions (mm) - L 305
Dimensions (mm) - H 260
Dimensions (mm) - W 190
Weight (kg) 13.8
